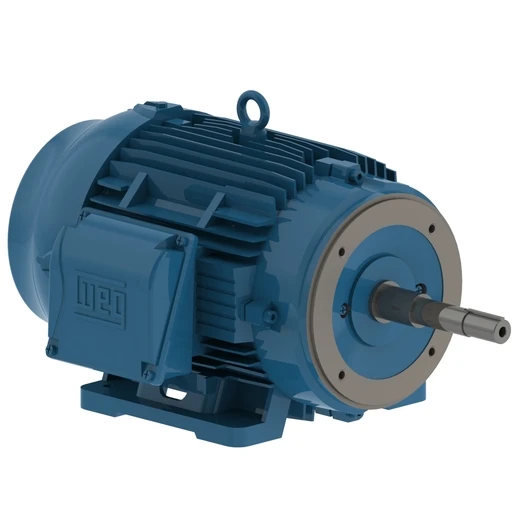

W22 SEVERE DUTY JM
TRIFÁSICOS W22 EFICIENCIA PREMIUM IE3

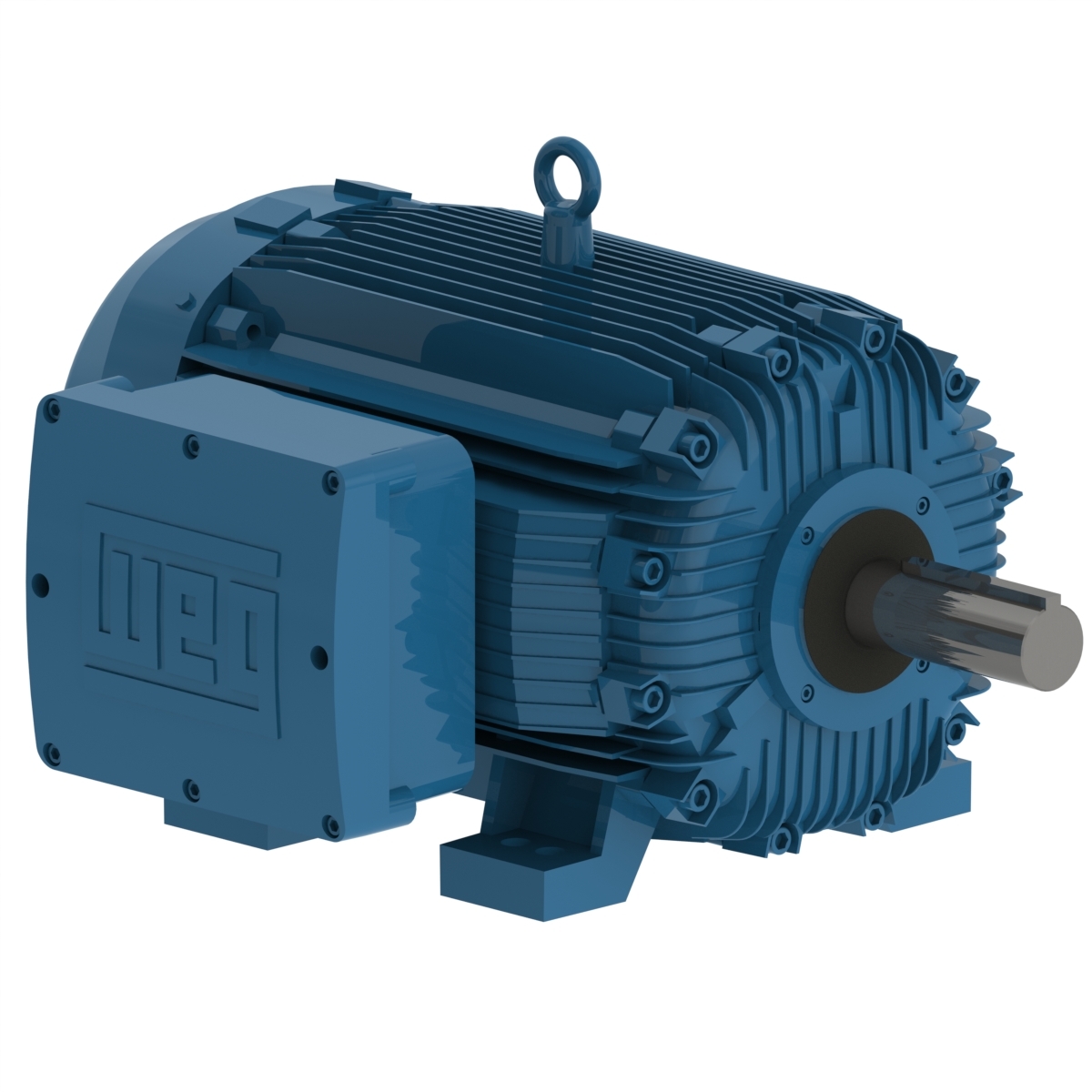

A PRUEBA DE EXPLOSIÓN
CRUSHER DUTY
ARMAZÓN 56 DE LÁMINA ROLADA
ARMAZON DE LÁMINA ROLADA NEMA USO BOMBA
APLICACIONES

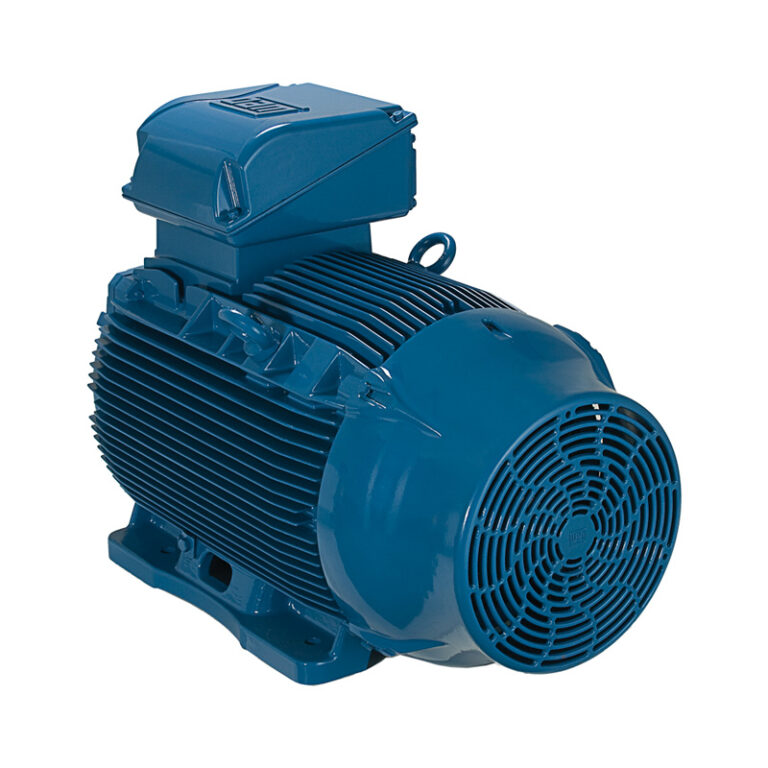

W22 ARMAZÓN DE ALUMINIO
Características
- Motores con patas desmontables (armazón 143/5T - 213/5T).
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones superior F3 como estándar.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Protección IP55.
- Servicio continuo.
- Factor de servicio 1.25.
- Voltaje 208-230 / 460 V @ 60 HZ.
- Aplican certificaciones a partir de 1 HP.
Especificaciones
| Potencia | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Polos | Armazón/NEMA | Model | Código SAP | Model | Código SAP | Model | Código SAP |
| 0.37 | 0.5 | 6 | 143T | .5012MP3E143T | 12209091 | .5012MP3E143TC | 15069636 | .5012MP3E143TD | - |
| 8 | 143T | .5009MP3E143T | 12209005 | .5009MP3E143TC | 12650334 | .5009MP3E143TD | - | ||
| 0.56 | 0.75 | 4 | 143T | .7518MP3E143T | 12209312 | .7518MP3E143TC | 12214431 | .7518MP3E143TD | - |
| 6 | 143T | .7512MP3E143T | 12209094 | .7512MP3E143TC | 12905086 | .7512MP3E143TD | - | ||
| 8 | 145T | .7509MP3E145T | 12208987 | .7509MP3E145TC | - | .7509MP3E145TD | - | ||
| 0.75 | 1 | 4 | 143T | 00118MT3E143T | 12153068 | 00118MT3E143TC | 12868601 | 00118MT3E143TD | - |
| 6 | 145T | 00112MT3E145T | 12178665 | 00112MT3E145TC | - | 00112MT3E145TD | - | ||
| 8 | 182T | 00109MT3E182T | 12178666 | 00109MT3E182TC | - | 00109MT3E182TD | - | ||
| 1.1 | 1.5 | 2 | 143T | 00156MT3E143T | - | 00156MT3E143TC | 12246979 | 00156MT3E143TD | - |
| 4 | 145T | 00158MT3E145T | 12178658 | 00158MT3E145TC | 12559080 | 00158MT3E145TD | - | ||
| 6 | 182T | 00152MT3E182T | 12212277 | 00152MT3E182TC | - | 00152MT3E182TD | - | ||
| 8 | 184T | 00159MT3E184T | - | 00159MT3E184TC | - | 00159MT3E184TD | - | ||
| 1.5 | 2 | 2 | 145T | 00236MT3E145T | 12923485 | 00236MT3E145TC | - | 00236MT3E145TD | - |
| 4 | 145T | 00218MT3E145T | 12178659 | 00218MT3E145TC | 12214471 | 00218MT3E145TD | - | ||
| 6 | 184T | 00212MT3E184T | 12212271 | 00212MT3E184TC | - | 00212MT3E184TD | - | ||
| 8 | 213T | 00209MT3E213T | - | 00209MT3E213TC | - | 00209MT3E213TCD | - | ||
| 2 | 3 | 2 | 182T | 00336MT3E182T | - | 00336MT3E182TC | - | 00336MT3E182TD | - |
| 4 | 182T | 00318MT3E182T | 12178660 | 00318MT3E182TC | 12469985 | 00318MT3E182TD | - | ||
| 6 | 213T | 00312MT3E213T | 12212275 | 00312MT3E213TC | - | 00312MT3E213TD | - | ||
| 8 | 215T | 00309MT3E215T | - | 00309MT3E215TC | - | 00309MT3E215TD | - | ||
| 3.7 | 5 | 2 | 184T | 00536MT3E184T | 12212135 | 00536MT3E184TC | - | 00536MT3E184TD | 12212273 |
| 4 | 184T | 00518MT3E184T | 12178664 | 00518MT3E184TC | - | 00518MT3E184TD | - | ||
| 6 | 215T | 00512MT3E215T | 12316542 | 00512MT3E215TC | - | 00512MT3E215TD | - | ||
| 5.6 | 7.5 | 2 | 213T | 00736MT3E213T | 12212276 | 00736MT3E213TC | - | 00736MT3E213TD | - |
| 4 | 213T | 00718MT3E213T | 12178662 | 00718MT3E213TC | - | 00718MT3E213TD | - | ||
| 7.5 | 10 | 2 | 215T | 01036MT3E215T | 12212134 | 01036MT3E215TC | - | 01036MT3E215TD | 12476389 |
| 4 | 215T | 01018MT3E215T | 12178663 | 01018MT3E215TC | - | 01018MT3E215TD | - | ||

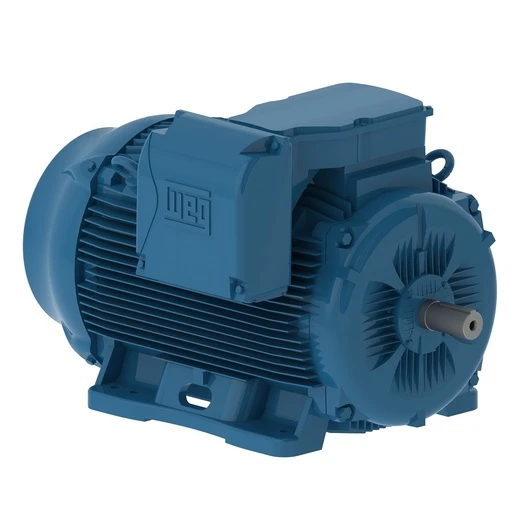

W22 SEVERE DUTY
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Rodamiento de bolas.
- Servicio continuo.
- Factor de servicio 1.25 de 1HP a 100HP.
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Aplican certificaciones a partir de 1HP.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|---|---|
| 0.75 | 4 | 143T | .7518ET3E143TW | 12178038 | .7518ET3EM143TC | 12178044 | .7518ET3EM143TDW | - |
| 6 | 143T | .7512ET3E143TW | 12178121 | .7512ET3EM143TC | 12392524 | 7512ET3EM143TDW | - | |
| 8 | 143/5T | .7509ET3E145TW | 12178123 | .7509ET3EM145TC | 12212343 | .7509ET3EM145TDW | - | |
| 1 | 4 | 143/5T | 00118ET3EM143TW | 12860528 | 00118ET3EM143TCW | 12860525 | 00118ET3EM143TDW | - |
| 6 | 143/5T | 00112ET3EM145TW | 13258778 | 00112ET3EM145TCW | 13258779 | 00112ET3EM145TDW | - | |
| 8 | 182/4T | 00109ET3EM182TW | 13282342 | 00109ET3EM182TCW | 13282346 | 00109ET3EM182TDW | - | |
| 2 | 2 | 143/5T | 00236ET3EM145TW | 12906475 | 00236ET3EM145TCW | 12906476 | 00236ET3EM145TDW | 12906477 |
| 4 | 143/5T | 00218ET3EM145TW | 12860480 | 00218ET3EM145TCW | 12903724 | 00218ET3EM145TDW | 12860527 | |
| 6 | 182/4T | 00212ET3EM184TW | 13258782 | 00212ET3EM184TCW | 13258783 | 00212ET3EM184TDW | - | |
| 8 | 213/5T | 00209ET3EM213TW | 13282361 | 00209ET3EM213TCW | 13282362 | 00209ET3EM213TDW | - | |
| 3 | 2 | 182/4T | 00336ET3EM182TW | 12906532 | 00336ET3EM182TCW | 12906534 | 00336ET3EM182TDW | 12906535 |
| 2 | 182/4T | - | - | 00336ET3EM182TCH | 12907474 | - | - | |
| 4 | 182/4T | 00318ET3EM182TW | 12860484 | 00318ET3EM182TCW | 12860482 | 00318ET3EM182TDW | 12860483 | |
| 4 | 182/4T | - | - | 00318ET3EM182TCH | 13603054 | - | - | |
| 6 | 213/5T | 00312ET3EM213TW | 13258784 | 00312ET3EM213TCW | 13258785 | 00312ET3EM213TDW | - | |
| 8 | 213/5T | 00309ET3EM215TW | 13282365 | 00309ET3EM215TCW | 13282367 | 00309ET3EM215TDW | - | |
| 5 | 2 | 182/4T | 00536ET3EM184TW | 12906536 | 00536ET3EM184TCW | 12906537 | 00536ET3EM184TDW | 12906559 |
| 2 | 182/4T | - | - | 00536ET3EM184TCH | 13789534 | - | - | |
| 4 | 182/4T | 00518ET3EM184TW | 12860487 | 00518ET3EM184TCW | 12903720 | 00518ET3EM184TDW | 12860486 | |
| 4 | 182/4T | - | - | 00518ET3EM184TCH | 13588337 | - | - | |
| 6 | 213/5T | 00512ET3EM215TW | 13258786 | 00512ET3EM215TCW | 13258787 | 00512ET3EM215TDW | 13761245 | |
| 8 | 254/6T | 00509ET3EM254TW | 13282388 | 00509ET3EM254TCW | 13321591 | 00509ET3EM254TDW | - | |
| 7.5 | 2 | 213/5T | 00736ET3EM213TW | 12906561 | 00736ET3EM213TCW | 12906562 | 00736ET3EM213TDW | 12906563 |
| 4 | 213/5T | 00718ET3EM213TW | 12860535 | 00718ET3EM213TCW | 12860619 | 00718ET3EM213TDW | 12860620 | |
| 6 | 254/6T | 00712ET3EM254TW | 13108878 | 00712ET3EM254TCW | 13258789 | 00712ET3EM254TDW | - | |
| 8 | 254/6T | 00709ET3EM256TW | 13321592 | 00709ET3EM256TCW | 13321593 | 00709ET3EM256TDW | - | |
| 10 | 2 | 213/5T | 01036ET3EM215TW | 12906566 | 01036ET3EM215TCW | 12906567 | 01036ET3EM215TDW | 12906578 |
| 4 | 213/5T | 01018ET3EM215TW | 12860551 | 01018ET3EM215TCW | 12860548 | 01018ET3EM215TDW | 12860550 | |
| 6 | 254/6T | 01012ET3EM256TW | 13258790 | 01012ET3EM256TCW | 13258791 | 01012ET3EM256TDW | - | |
| 8 | 284/6T | 01009ET3EM284TW | 13321594 | 01009ET3EM284TCW | 13321595 | 01009ET3EM284TDW | - |
W22 SEVERE DUTY
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones lateral F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Rodamiento de bolas (de rodillos como opcional bajo consulta).
- Servicio continuo.
- Factor de servicio 1.25 de 1 a 100HP y de 1.15 para potencias mayores.
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Aplican certificaciones a partir de 1HP.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|---|---|
| 15 | 2 | 254/6T | 01536ET3EM254TW | 12906579 | 01536ET3EM254TCW | 12906581 | 01536ET3EM254TDW | - |
| 4 | 254/6T | 01518ET3EM254TW | 12860555 | 01518ET3EM254TCW | 12860553 | 01518ET3EM254TDW | 12860554 | |
| 6 | 284/6T | 01512ET3EM284TW | 13260100 | 01512ET3EM284TCW | 13260101 | 01512ET3EM284TDW | - | |
| 8 | 284/6T | 01509ET3EM286TW | 13321596 | 01509ET3EM286TCW | - | 01509ET3EM286TDW | - | |
| 20 | 2 | 254/6T | 02036ET3EM256TW | 12906583 | 02036ET3EM256TCW | 12906584 | 02036ET3EM256TDW | - |
| 4 | 254/6T | 02018ET3EM256TW | 12860558 | 02018ET3EM256TCW | 12860556 | 02018ET3EM256TDW | 12860557 | |
| 6 | 284/6T | 02012ET3EM286TW | 13260102 | 02012ET3EM286TCW | 13260103 | 02012ET3EM286TDW | - | |
| 8 | 324/6T | 02009ET3EM324TW | 13321597 | 02009ET3EM324TCW | - | 02009ET3EM324TDW | - | |
| 25 | 2 | 284/6TS | 02536ET3EM284TSW | 12906608 | 02536ET3EM284SCW | 12906609 | 02536ET3EM284SDW | - |
| 4 | 284/6T | 02518ET3EM284TW | 12860562 | 02518ET3EM284TCW | 12860560 | 02518ET3EM284TDW | 12860561 | |
| 6 | 324/6T | 02512ET3EM324TW | 13461078 | 02512ET3EM324TCW | - | 02512ET3EM324TDW | - | |
| 8 | 324/6T | 02509ET3EM326TW | 13321668 | 02509ET3EM326TCW | - | 02509ET3EM326TDW | - | |
| 30 | 2 | 284/6TS | 03036ET3EM286TSW | 12906612 | 03036ET3EM286SCW | 12906613 | 03036ET3EM286SDW | 13751751 |
| 4 | 284/6T | 03018ET3EM286TW | 12860566 | 03018ET3EM286TCW | 12860564 | 03018ET3EM286TDW | 12860565 | |
| 6 | 324/6T | 03012ET3EM326TW | 13260104 | 03012ET3EM326TCW | 13282166 | 03012ET3EM326TDW | - | |
| 8 | 364/5T | 03009ET3EM364TW | 13321669 | 03009ET3EM364TCW | - | 03009ET3EM364TDW | - | |
| 40 | 2 | 324/6TS | 04036ET3EM324TSW | 12907421 | 04036ET3EM324SCW | 12907422 | 04036ET3EM324SDW | - |
| 4 | 324/6T | 04018ET3EM324TW | 12860693 | 04018ET3EM324TCW | 12860588 | 04018ET3EM324TDW | - | |
| 6 | 364/5T | 04012ET3EM364TW | 13282209 | 04012ET3EM364TCW | 13282211 | 04012ET3EM364TDW | - | |
| 8 | 364/5T | 04009ET3EM365TW | 13321670 | 04009ET3EM365TCW | - | 04009ET3EM365TDW | - | |
| 50 | 2 | 324/6TS | 05036ET3EM326TSW | 12907423 | 05036ET3EM326SCW | 12907424 | 05036ET3EM326SDW | 12907425 |
| 4 | 324/6T | 05018ET3EM326TW | 12860591 | 05018ET3EM326TCW | 12860590 | 05018ET3EM326TDW | - | |
| 6 | 364/5T | 05012ET3EM365TW | 13108878 | 05012ET3EM365TCW | - | 05012ET3EM365TDW | - | |
| 8 | 404/5T | 05009ET3EM404TW | 13519400 | 05009ET3EM404TCW | - | 05009ET3EM404TDW | - | |
| 60 | 2 | 364TS | 06036ET3EM364TSW | 12907307 | 06036ET3EM364SCW | 12907448 | 06036ET3EM364SDW | - |
| 4 | 364/5T | 06018ET3EM364TW | 12860594 | 06018ET3EM364TCW | 12860593 | 06018ET3EM364TDW | - | |
| 6 | 404/5T | 06012ET3EM404TW | 13282216 | 06012ET3EM404TCW | 13970172 | 06012ET3EM404TDW | - | |
| 8 | 404/5T | 06009ET3EM405TW | 13519401 | 06009ET3EM405TCW | - | 06009ET3EM405TDW | - | |
| 75 | 2 | 364/5TS | 07536ET3EM365TSW | 12907449 | 07536ET3EM365SCW | 12907450 | 07536ET3EM365SDW | - |
| 4 | 364/5T | 07518ET3EM365TW | 12860597 | 07518ET3EM365TCW | 12860596 | 07518ET3EM365TDW | - | |
| 6 | 404/5T | 07512ET3EM405TW | 13282248 | 07512ET3EM405TCW | 13282250 | 07512ET3EM405TDW | - | |
| 8 | 444/5T | 07509ET3EM444TW | 13519402 | 07509ET3EM444TCW | - | 07509ET3EM444TDW | - |
W22 SEVERE DUTY
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones lateral F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Rodamiento de bolas (de rodillos como opcional bajo consulta).
- Servicio continuo.
- Factor de servicio 1.25 de 1 a 100HP y de 1.15 para potencias mayores.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|---|---|
| 100 | 2 | 404/5TS | 10036ET3EM405TSW | 12907451 | 10036ET3EM405SCW | 12907452 | 10036ET3EM405SDW | - |
| 4 | 404/5T | 10018ET3EM405TW | 12860609 | 10018ET3EM405TCW | 12860608 | 10018ET3EM405TDW | - | |
| 6 | 444/5T | 10012ET3EM444TW | 13282255 | 10012ET3EM444TCW | 13282257 | 10012ET3EM444TDW | - | |
| 8 | 444/5T | 10009ET3EM445TW | 13519403 | 10009ET3EM445TCW | - | 10009ET3EM445TDW | - | |
| 125 | 2 | 444/5TS | 12536ET3EM444TSW | 12907453 | 12536ET3EM444SCW | 12907454 | 12536ET3EM444SDW | - |
| 4 | 444/5T | 12518ET3EM444TW | 12860612 | 12518ET3EM444TCW | 12860611 | 12518ET3EM444TDW | - | |
| 6 | 444/5T | 12512ET3EM445TW | 13282285 | 12512ET3EM445TCW | 13282287 | 12512ET3EM445TDW | - | |
| 8 | 445/7T | 12509ET3EM447TW | 13519404 | 12509ET3EM447TCW | - | 12509ET3EM447TDW | - | |
| 150 | 2 | 444/5TS | 15036ET3EM445TSW | 12907455 | 15036ET3EM445SCW | 12907456 | 15036ET3EM445TSDW | - |
| 4 | 444/5T | 15018ET3EM445TW | 12860614 | 15018ET3EM445TCW | 12860613 | 15018ET3EM445TDW | - | |
| 6 | 445/7T | 15012ET3EM447TW | 13282298 | 15012ET3EM447TCW | - | 15012ET3EM447TDW | - | |
| 8 | 445/7T | 15009ET3EM447TW | 13519405 | 15009ET3EM447TCW | - | 15009ET3EM447TDW | - | |
| 200 | 2 | 447/9TS | 20036ET3EM447TSW | 12907457 | 20036ET3EM447SCW | 12907468 | 20036ET3EM447SDW | 12907469 |
| 4 | 445/7T | 20018ET3EM447TW | 12860616 | 20018ET3EM447TCW | 13569939 | 20018ET3EM447TDW | - | |
| 6 | 447/9T | 20012ET3EM447TW | 13282302 | 20012ET3EM447TCW | - | 20012ET3EM447TDW | - | |
| 8 | 447/9T | 20009ET3EM449TW | 13686458 | 20009ET3EM449TCW | - | 20009ET3EM449TDW | - | |
| 250 | 2 | 447/9TS | 25036ET3EM447TSW | 12907470 | 25036ET3EM447SCW | 12907471 | 25036ET3EM447SDW | - |
| 4 | 447/9T | 25018ET3EM447TW | 12860617 | 25018ET3EM447TCW | 12860628 | 25018ET3EM447TDW | - | |
| 6 | 447/9T | 25012ET3EM449TW | 13282304 | 25012ET3EM449TCW | - | 25012ET3EM449TDW | - | |
| 8 | 586/7T | 25009ET3EM586TW | 14145071 | 25009ET3EM586TCW | - | 25009ET3EM586TDW | - | |
| 300 | 2 | 447/9TS | 30036ET3EM449TSW | 12907472 | 30036ET3EM449SCW | 13728417 | 30036ET3EM449SDW | - |
| 4 | 447/9T | 30018ET3EM449TW | 12860629 | 30018ET3EM449TCW | - | 30018ET3EM449TDW | - | |
| 6 | 447/9T | 30012ET3EM449TW | 13282306 | 30012ET3EM449TCW | - | 30012ET3EM449TDW | - | |
| 350 | 2 | 447/9TS | 35036ET3EM449TSW | 12969202 | 35036ET3EM449SCW | 13729380 | 35036ET3EM449SDW | - |
| 4 | 447/9T | 35018ET3EM449TW | 12860631 | 35018ET3EM449TCW | - | 35018ET3EM449TDW | - | |
| 6 | 586/7T | 35012ET3EM586TW | - | 35012ET3EM586TCW | - | 35012ET3EM586TDW | - | |
| 400 | 2 | 586/7TS | 40036ET3EM586TSW | 13537561 | 40036ET3EM586SCW | - | 40036ET3EM586SDW | - |
| 4 | 586/7T | 40018ET3EM586TW | 12860632 | 40018ET3EM586TCW | - | 40018ET3EM586TDW | - | |
| 6 | 586/7T | 40012ET3EM586TW | 13758832 | 40012ET3EM586TCW | - | 40012ET3EM586TDW | - | |
| 450 | 4 | 586/7TS | 45018ET3EM586TW | - | 45018ET3EM586TCW | - | 45018ET3EM586TDW | - |
| 500 | 4 | L447/9T | 50018ET3EM449TW | 14435782 | 50018ET3EM449TCW | - | 50018ET3EM449TDW | - |
| 4 | 586/7T | 50018ET3EM586TW | 12860633 | 50018ET3EM586TCW | - | 50018ET3EM586TDW | - |
CON FRENO
Características:
- Montaje horizontal.
- Caja de conexiones lateral F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.25
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Tensión de alimentación del freno 220-240V. Opcional 440-480V.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 0.5 | 4 | 56T | .5018ES3EBMW56-S | 14593616 | .5018ES3EBMW56C-S | 15501628 |
| 1 | 4 | 143T | 00118ET3EBM143 | 13502534 | 00118ET3EBM143TC | - |
| 6 | 145T | 00112ET3EBM145T | 15657622 | 00112ET3EBM145TC | - | |
| 8 | 182T | 00109ET3EBM182T | - | 00109ET3EBM182TC | - | |
| 1.5 | 2 | 143T | 00156ET3EBM143T | 15390832 | 00156ET3EBM143TC | - |
| 4 | 145T | 00158ET3EBM145T | 13271404 | 00158ET3EBM145TC | 13548666 | |
| 6 | 182T | 00152ET3EBM182T | - | 00152ET3EBM182TC | - | |
| 8 | 184T | 00159ET3EBM184T | - | 00159ET3EBM184TC | - | |
| 2 | 2 | 145T | 00236ET3EBM145T | - | 00236ET3EBM145TC | - |
| 4 | 145T | 00218ET3EBM145T | 13502533 | 00218ET3EBM145TC | 14278045 | |
| 6 | 184T | 00212ET3EBM184T | - | 00212ET3EBM184TC | - | |
| 8 | 213T | 00209ET3EBM213T | - | 00209ET3EBM213TC | - | |
| 3 | 2 | 182T | 00336ET3EBM182T | - | 00336ET3EBM182TC | - |
| 4 | 182T | 00318ET3EBM182T | 13393091 | 00318ET3EBM182TC | 13459361 | |
| 6 | 213T | 00312ET3EBM213T | - | 00312ET3EBM213TC | - | |
| 8 | 215T | 00309ET3EBM215T | - | 00309ET3EBM215TC | - | |
| 5 | 2 | 184T | 00536ET3EBM184T | - | 00536ET3EBM184TC | - |
| 4 | 184T | 00518ET3EBM184T | 13524177 | 00518ET3EBM184TC | 13548719 | |
| 6 | 215T | 00512ET3EBM215T | - | 00512ET3EBM215TC | - | |
| 8 | 254T | 00509ET3EBM254T | - | 00509ET3EBM254TC | - | |
| 7.5 | 2 | 213T | 00736ET3EBM213T | - | 00736ET3EBM213TC | - |
| 4 | 213T | 00718ET3EBM213T | 13471047 | 00718ET3EBM213TC | 13548720 | |
| 6 | 254T | 00712ET3EBM254T | - | 00712ET3EBM254TC | - | |
| 8 | 256T | 00709ET3EBM256T | - | 00709ET3EBM256TC | - |
CON FRENO
Características:
- Montaje horizontal.
- Caja de conexiones lateral F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.25
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Tensión de alimentación del freno 220-240V. Opcional 440-480V.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 10 | 2 | 215T | 01036ET3EBM215T | - | 01036ET3EBM215TC | - |
| 4 | 215T | 01018ET3EBM215T | 13471169 | 01018ET3EBM215TC | 13549197 | |
| 6 | 256T | 01012ET3EBM256T | 13508732 | 01012ET3EBM256TC | - | |
| 15 | 2 | 254T | 01536ET3EBM254T | 15537079 | 01536ET3EBM254TC | 15537086 |
| 4 | 254T | 01518ET3EBM254T | 15537082 | 01518ET3EBM254TC | 15537098 | |
| 20 | 2 | 256T | 02036ET3EBM256T | 15537084 | 02036ET3EBM256TC | 15537099 |
| 4 | 256T | 02018ET3EBM256T | 15537085 | 02018ET3EBM256TC | 15537100 | |
| 25 | 2 | 284/6T | 02536ET3EBM256T | - | 02536ET3EBM256TC | - |
| 4 | 284/6T | 02518ET3EBM256T | - | 02518ET3EBM256TC | - | |
| 30 | 2 | 284/6T | 03036ET3EBM286T | - | 03036ET3EBM286TC | - |
| 4 | 284/6T | 03018ET3EBM286T | 15627545 | 03018ET3EBM286TC | - | |
| 40 | 2 | 324/6T | 04036ET3EBM326T | - | 04036ET3EBM326TC | - |
| 4 | 324/6T | 04018ET3EBM326T | 15627546 | 04018ET3EBM326TC | - | |
| 50 | 2 | 324/6T | 05036ET3EBM326T | - | 05036ET3EBM326TC | - |
| 4 | 324/6T | 05018ET3EBM326T | 15837903 | 05018ET3EBM326TC | - | |
| 60 | 2 | 364/5T | 06036ET3EBM365T | - | 06036ET3EBM365TC | - |
| 4 | 364/5T | 06018ET3EBM365T | - | 06018ET3EBM365TC | - | |
| 75 | 2 | 364/5T | 07536ET3EBM365T | - | 07536ET3EBM365TC | - |
| 4 | 364/5T | 07518ET3EBM365T | - | 07518ET3EBM365TC | 15656732 |
W22 SEVERE DUTY JM
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Rodamiento de bolas.
- Servicio continuo.
- Factor de servicio 1.25 de 1HP a 100HP.
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Aplican certificaciones a partir de 1HP.
Especificaciones
| HP | Polos | Armazón | Model | Código SAP |
|---|---|---|---|---|
| 0.75 | 4 | 143/5T | .7518ET3EM143JM | - |
| 1 | 4 | 143/5T | 00118ET3EM143JM | 12953698 |
| 1.5 | 2 | 143/5T | 00156ET3EM143JM | 12969121 |
| 4 | 143/5T | 00158ET3EM145JM | 12874301 | |
| 2 | 2 | 143/5T | 00236ET3EM145JM | 12969123 |
| 4 | 143/5T | 00218ET3EM145JM | 12874298 | |
| 3 | 2 | 182/4T | 00336ET3EM182JM | 12969124 |
| 2 | 182/4T | 00336ET3EM182JM8 | 13654529 | |
| 4 | 182/4T | 00318ET3EM182JM | 12874302 | |
| 4 | 182/4T | 00318ET3EM182JM8 | 13869374 | |
| 5 | 2 | 182/4T | 00536ET3EM184JM | 12969158 |
| 2 | 182/4T | 00536ET3EM184JM8 | 13593636 | |
| 4 | 182/4T | 00518ET3EM184JM | 12874304 | |
| 4 | 182/4T | 00518ET3EM184JM8 | 13729381 | |
| 7.5 | 2 | 213/5T | 00736ET3EM213JM | 12969159 |
| 4 | 213/5T | 00718ET3EM213JM | 12874305 | |
| 10 | 2 | 213/5T | 01036ET3EM215JM | 12969161 |
| 4 | 213/5T | 01018ET3EM215JM | 12874307 | |
| 15 | 2 | 254/6T | 01536ET3EM254JM | 12969162 |
| 4 | 254/6T | 01518ET3EM254JM | 12874338 | |
| 20 | 2 | 254/6T | 02036ET3EM256JM | 12969163 |
| 4 | 254/6T | 02018ET3EM256JM | 12874339 | |
| 25 | 2 | 284/6T | 02536ET3EM284JM | 12969164 |
| 4 | 284/6T | 02518ET3EM284JM | 12874341 | |
| 30 | 2 | 284/6T | 03036ET3EM286JM | 12969165 |
| 4 | 284/6T | 03018ET3EM286JM | 12874824 | |
| 40 | 2 | 324/6T | 04036ET3EM324JMN | 12969166 |
| 4 | 324/6T | 04018ET3EM324JMN | 12874825 | |
| 50 | 2 | 324/6T | 05036ET3EM326JMN | 12969198 |
| 4 | 324/6T | 05018ET3EM326JMN | 12874826 | |
| 60 | 2 | 364/5T | 06036ET3EM364JM | 12969200 |
| 4 | 364/5T | 06018ET3EM364JM | 12874898 | |
| 75 | 2 | 364/5T | 07536ET3EM365JM | 12969201 |
| 4 | 364/5T | 07518ET3EM365JM | 12874299 |
TRIFÁSICOS W22 EFICIENCIA PREMIUM IEC
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Caja de conexiones superior F3.
- Aislamiento clase F.
- Diseño eléctrico IEC N.
- Rodamiento de bolas.
- Servicio continuo.
- Factor de servicio 1.15.
- Voltaje: 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Aplican certificaciones a partir de 1 HP.
Especificaciones
| Potencia | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| KW | HP | Polos | Armazón | Model | Precio | Model | Precio | Model | Precio |
| 0.18 | 0.25 | - | 63 | .1836EP3E63 | - | .1836EP3E63C | - | .1836EP3E63FF | - |
| 4 | 63 | .1818EP3E63 | - | .1818EP3E63C | - | .1818EP3E63FF | - | ||
| 6 | 71 | .1812EP3E71 | - | .1812EP3E71C | - | .1812EP3E71FF | - | ||
| 0.25 | 0.33 | 2 | 63 | .2536EP3E63 | - | .2536EP3E63C | - | .2536EP3E63FF | - |
| 4 | 71 | .2518EP3E71 | - | .2518EP3E71C | - | .2518EP3E71FF | - | ||
| 6 | 80 | .2512EP3E80 | - | .2512EP3E80C | - | .2512EP3E80FF | - | ||
| 0.37 | 0.5 | 2 | 71 | .3736EP3E71 | - | .3736EP3E71C | - | .3736EP3E71FF | - |
| 4 | 71 | .3718EP3E71 | - | .3718EP3E71C | - | .3718EP3E71FF | - | ||
| 6 | 80 | .3712EP3E80 | - | .3712EP3E80C | - | .3712EP3E80FF | - | ||
| 0.55 | 0.75 | 2 | 71 | .5536EP3E71 | - | .5536EP3E71C | - | .5536EP3E71FF | - |
| 4 | 80 | .5518EP3E80 | - | .5518EP3E80C | - | .5518EP3E80FF | - | ||
| 6 | 90S | .5512EP3E90S | - | .5512EP3E90SC | - | .5512EP3E90SFF | - | ||
| 0.75 | 1 | 2 | 80 | .7536ET3E80 | - | .7536ET3E80C | - | .7536ET3E80FF | - |
| 4 | 90S | .7518ET3E90S | - | .7518ET3E90SC | - | .7518ET3E90SFF | - | ||
| 6 | 90L | .7512ET3E90L | - | .7512ET3E90LC | - | .7512ET3E90LFF | - | ||
| 8 | 100L | .7509ET3E100L | - | .7509ET3E100LC | - | .7509ET3E100LFF | - | ||
| 1.1 | 1.5 | 2 | 80 | 00136ET3E80 | - | 00136ET3E80C | - | 00136ET3E80FF | - |
| 4 | 90S | 00118ET3E90S | - | 00118ET3E90SC | - | 00118ET3E90SFF | - | ||
| 6 | 112M | 00112ET3E112M | - | 00112ET3E112MC | - | 00112ET3E112MFF | - | ||
| 8 | 100L | 00109ET3E100L | - | 00109ET3E100LC | - | 00109ET3E100LFF | - | ||
| 1.5 | 2 | 2 | 90S | 00156ET3E90S | - | 00156ET3E90SC | - | 00156ET3E90SFF | - |
| 4 | 90L | 00158ET3E90L | - | 00158ET3E90LC | - | 00158ET3E90LFF | - | ||
| 6 | 112M | 00152ET3E112M | - | 00152ET3E112MC | - | 00152ET3E112MFF | - | ||
| 8 | 112M | 00159ET3E112M | - | 00159ET3E112MC | - | 00159ET3E112MFF | - | ||
| 2.2 | 3 | 2 | 90L | 00236ET3E90L | - | 00236ET3E90LC | - | 00236ET3E90LFF | - |
| 4 | 100L | 00218ET3E100L | - | 00218ET3E100LC | - | 00218ET3E100LFF | - | ||
| 6 | 132S | 00212ET3E132S | - | 00212ET3E132SC | - | 00212ET3E132SFF | - | ||
| 8 | 132S | 00209ET3E132S | - | 00209ET3E132SC | - | 00209ET3E132SFF | - | ||
| 3 | 4 | 2 | 90L | 00336ET3E90L | - | 00336ET3E90LC | - | 00336ET3E90LFF | - |
| 4 | 100L | 00318ET3E100L | - | 00318ET3E100LC | - | 00318ET3E100LFF | - | ||
| 6 | 132S | 00312ET3E132S | - | 00312ET3E132SC | - | 00312ET3E132SFF | - | ||
| 8 | 132M | 00309ET3E132M | - | 00309ET3E132MC | - | 00309ET3E132MFF | - | ||
| 4 | 5.5 | 2 | 112M | 00436ET3E112M | - | 00436ET3E112MC | - | 00436ET3E112MFF | - |
| 4 | 112M | 00418ET3E112M | - | 00418ET3E112MC | - | 00418ET3E112MFF | - | ||
| 6 | 132M | 00412ET3E132M | - | 00412ET3E132MC | - | 00412ET3E132MFF | - | ||
| 8 | 160M | 00409ET3E160M | - | 00409ET3E160MC | - | 00409ET3E160MFF | - | ||
| 5.5 | 7.5 | 2 | 132S | 00536ET3E132S | - | 00536ET3E132SC | - | 00536ET3E132SFF | - |
| 4 | 132S | 00518ET3E132S | - | 00518ET3E132SC | - | 00518ET3E132SFF | - | ||
| 6 | 132M | 00512ET3E132M | - | 00512ET3E132MC | - | 00512ET3E132MFF | - | ||
| 8 | 160M | 00509ET3E160M | - | - | 00509ET3E160MFF | - | |||
A PRUEBA DE EXPLOSIÓN
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.15.
- Voltaje 208-230 / 460 V @ 60 HZ.
- División l Clase l Grupo C y D.
- División l Clase ll Grupo F y G (143T / 586/7T).
- Clase de temperatura T3C (armazón 143T a 586/7T).
- Termostato desconexión 155°C
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 1 | 2 | - | 00136XT3E143T | - | 00136XT3E143TC | 15003523 |
| 4 | 143T | 00118XT3E143T | 14976970 | 00118XT3E143TC | 15153403 | |
| 6 | 145T | 00112XT3E145T | - | 00112XT3E145TC | - | |
| 8 | 182T | 00109XT3E182T | 15416745 | 00109XT3E182TC | - | |
| 1.5 | 2 | 143T | 00156XT3E143T | - | 00156XT3E143TC | 15155770 |
| 4 | 145T | 00158XT3E145T | 14976988 | 00158XT3E145TC | 15153438 | |
| 6 | 182T | 00152XT3E182T | - | 00152XT3E182TC | - | |
| 8 | 184T | 00159XT3E184T | - | 00159XT3E184TC | - | |
| 2 | 2 | 145T | 00236XT3E145T | 15153456 | 00236XT3E145TC | 15155771 |
| 4 | 145T | 00218XT3E145T | 14976992 | 00218XT3E145TC | 15153439 | |
| 6 | 184T | 00212XT3E184T | - | 00212XT3E184TC | - | |
| 8 | 213T | 00209XT3E213T | - | 00209XT3E213TC | - | |
| 3 | 2 | 182T | 00336XT3E182T | 15153457 | 00336XT3E182TC | 15058691 |
| 4 | 182T | 00318XT3E182T | 14976993 | 00318XT3E182TC | 15466706 | |
| 6 | 213T | 00312XT3E213T | - | 00312XT3E213TC | - | |
| 8 | 215T | 00309XT3E215T | - | 00309XT3E215TC | - | |
| 5 | 2 | 184T | 00536XT3E184T | 15093831 | 00536XT3E184TC | 15145623 |
| 4 | 184T | 00518XT3E184T | 14977199 | 00518XT3E184TC | 15153455 | |
| 6 | 215T | 00512XT3E215T | 16750005 | 00512XT3E215TC | - | |
| 8 | 254T | 00509XT3E254T | - | 00509XT3E254TC | - | |
| 7.5 | 2 | 213T | 00736XT3E213T | 15288676 | 00736XT3E213TC | 15145672 |
| 4 | 213T | 00718XT3E213T | 14977207 | 00718XT3E213TC | 15058692 | |
| 6 | 254T | 00712XT3E254T | 15334306 | 00712XT3E254TC | - | |
| 8 | 256T | 00709XT3E256T | - | 00709XT3E256TC | - |
A PRUEBA DE EXPLOSIÓN
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.15.
- Voltaje 208-230 / 460 V @ 60 HZ.
- División l Clase l Grupo C y D.
- División l Clase ll Grupo F y G (143T / 586/7T).
- Clase de temperatura T3C (armazón 143T a 586/7T).
- Termostato desconexión 155°C
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 10 | 2 | 215T | 01036XT3E215T | 15068786 | 01036XT3E215TC | 15058694 |
| 4 | 215T | 01018XT3E215T | 14977625 | 01018XT3E215TC | 15058693 | |
| 6 | 256T | 01012XT3E256T | 15437614 | 01012XT3E256TC | - | |
| 8 | 284T | 01009XT3E284T | - | 01009XT3E284TC | - | |
| 15 | 2 | 254T | 01536XT3E254T | 15288677 | 01536XT3E254TC | 16752147 |
| 4 | 254T | 01518XT3E254T | 14977645 | 01518XT3E254TC | 15155526 | |
| 6 | 284T | 01512XT3E284T | 14962629 | 01512XT3E284TC | - | |
| 8 | 286T | 01509XT3E286T | - | 01509XT3E286TC | - | |
| 20 | 2 | 256T | 02036XT3E256T | 15226041 | 02036XT3E256TC | - |
| 4 | 256T | 02018XT3E256T | 14979186 | 02018XT3E256TC | 15155769 | |
| 6 | 286T | 02012XT3E286T | - | 02012XT3E286TC | - | |
| 8 | 324T | 02009XT3E324T | - | 02009XT3E324TC | - | |
| 25 | 2 | 284TS | 02536XT3E284TS | - | 02536XT3E284TSC | - |
| 4 | 284T | 02518XT3E284T | 15586821 | 02518XT3E284TC | 17143116 | |
| 6 | 324T | 02512XT3E324T | - | 02512XT3E324TC | - | |
| 8 | 326T | 02509XT3E326T | - | 02509XT3E326TC | - | |
| 30 | 2 | 286TS | 03036XT3E286TS | 15226043 | 03036XT3E286TSC | - |
| 4 | 286T | 03018XT3E286T | 15167012 | 03018XT3E286TC | 15288610 | |
| 6 | 326T | 03012XT3E326T | - | 03012XT3E326TC | - | |
| 8 | 364/5T | 03009XT3E364/5T | - | 03009XT3E364/5TC | - |
A PRUEBA DE EXPLOSIÓN
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.15.
- Voltaje 208-230 / 460 V @ 60 HZ.
- División l Clase l Grupo C y D.
- División l Clase ll Grupo F y G (143T / 586/7T).
- Clase de temperatura T3C (armazón 143T a 586/7T).
- Termostato desconexión 155°C
Especificaciones
| HP | Polos | Armazón | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 40 | 2 | 324TS | 04036XT3E324TS | - | 04036XT3E324TSC | - |
| 4 | 324T | 04018XT3E324T | - | 04018XT3E324TC | - | |
| 6 | 364/5T | 04012XT3E364/5T | - | 04012XT3E364/5TC | - | |
| 8 | 364/5T | 04009XT3E364/5T | - | 04009XT3E364/5TC | - | |
| 50 | 2 | 326TS | 05036XT3E326TS | - | 05036XT3E326TSC | - |
| 4 | 326T | 05018XT3E326T | - | 05018XT3E326TC | - | |
| 6 | 364/5T | 05012XT3E364/5T | - | 05012XT3E364/5TC | - | |
| 8 | 404/5T | 05009XT3E404/5T | - | 05009XT3E404/5TC | - | |
| 60 | 2 | 364/5TS | 06036XT3E364/5TS | - | 06036XT3E364/5TSC | - |
| 4 | 364/5T | 06018XT3E364/5T | - | 06018XT3E364/5TC | - | |
| 6 | 404/5T | 06012XT3E404/5T | - | 06012XT3E404/5TC | - | |
| 8 | 404/5T | 06009XT3E404/5T | - | 06009XT3E404/5TC | - | |
| 75 | 2 | 364/5TS | 07536XT3E364/5TS | - | 07536XT3E364/5TSC | - |
| 4 | 364/5T | 07518XT3E364/5T | - | 07518XT3E364/5TC | - | |
| 6 | 404/5T | 07512XT3E404/5T | - | 07512XT3E404/5TC | - | |
| 8 | 444/5T | 07509XT3E444/5T | - | 07509XT3E444/5TC | - | |
| 100 | 2 | 404/5TS | 10036XT3E404/5TS | - | 10036XT3E404/5TSC | - |
| 4 | 404/5T | 10018XT3E404/5T | - | 10018XT3E404/5TC | - | |
| 6 | 444/5T | 10012XT3E444/5T | - | 10012XT3E444/5TC | - | |
| 8 | 444/5T | 10009XT3E444/5T | - | 10009XT3E444/5TC | - | |
| 125 | 2 | 444/5TS | 12536XT3E444/5TS | - | 12536XT3E444/5TSC | - |
| 4 | 444/5T | 12518XT3E444/5T | - | 12518XT3E444/5TC | - | |
| 6 | 444/5T | 12512XT3E444/5T | - | 12512XT3E444/5TC | - | |
| 8 | 504/5T | 12509XT3E504/5T | - | 12509XT3E504/5TC | - | |
| 150 | 2 | 444/5TS | 15036XT3E444/5TS | - | 15036XT3E444/5TSC | - |
| 4 | 444/5T | 15018XT3E444/5T | - | 15018XT3E444/5TC | - | |
| 6 | 504/5T | 15012XT3E504/5T | - | 15012XT3E504/5TC | - | |
| 8 | 504/5T | 15009XT3E504/5T | - | 15009XT3E504/5TC | - | |
| 200 | 2 | 504/5TS | 20036XT3E504/5TS | - | 20036XT3E504/5TSC | - |
| 4 | 504/5T | 20018XT3E504/5T | - | 20018XT3E504/5TC | - | |
| 6 | 504/5T | 20012XT3E504/5T | - | 20012XT3E504/5TC | - | |
| 8 | 586/7T | 20009XT3E586/7T | - | 20009XT3E586/7TC | - | |
| 250 | 2 | 504/5TS | 25036XT3E504/5TS | - | 25036XT3E504/5TSC | - |
| 4 | 504/5T | 25018XT3E504/5T | - | 25018XT3E504/5TC | - | |
| 6 | 586/7T | 25012XT3E586/7T | - | 25012XT3E586/7TC | - | |
| 8 | 586/7T | 25009XT3E586/7T | - | 25009XT3E586/7TC | - |
CRUSHER DUTY
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Resistencias calefactoras monofásicas a 127 V, C.A. (aplica para armazón 586/7T y TZ).
- Caja de conexiones lateral F1.
- Aislamiento clase F.
- Diseño eléctrico NEMA A.
- Doble sello “W-Seal” (excepto en armazón 586/7T y armazones TZ).
- Sello “laberinto” (en la flecha para armazón 586/7T y TZ).
- Rodamiento de rodillos.
- Factor de servicio 1.25 de 1 a 100HP y de 1.15 para potencias mayores.
- Voltaje 208-230 / 460 V para 50 y 60 HP, para las demás potencias voltaje 460 PWS @ 60 HZ.
- Protección IP55.
- Plan de pintura 203A
Se recomienda el uso de este motor para aplicaciones de: Cemento, máquinas trituradoras de piedra, bandas trasportadoras e industria minera.
Especificaciones
| Potencia | ||||
|---|---|---|---|---|
| KW | HP | Polos | Armazón | Model |
| 37 | 50 | 8 | 404/5T | 05009ET3EKD404T |
| 45 | 60 | 404/5T | 06009ET3EKD405T | |
| 56 | 75 | 444/5T | 07509ET3GKD444T | |
| 75 | 100 | 445/7T | 10009ET3GKD445T | |
| 90 | 125 | 447/9T | 12509ET3GKD447T | |
| 110 | 150 | 447/9T | 15009ET3GKD447T | |
| 150 | 200 | 4 | 504/5TZ | 20018EP3GKD504Z |
| 6 | 504/5TZ | 20012EP3GKD505Z | ||
| 8 | 447/9T | 20009ET3GKD449 | ||
| 8 | 447/9TZ | 20009ET3GKD449TZ | ||
| 8 | 586/7T | 20009ET3GKD586/7 | ||
| 185 | 250 | 4 | 447/9T | 25018ET3GKD447T |
| 4 | 447/9TZ | 25018ET3GKD447TZ | ||
| 4 | 504/5T | 25018ET3GKD505 | ||
| 4 | 504/5TZ | 225018ET3GVS505Z | ||
| 6 | 447/9T | 25012ET3GKDN449 | ||
| 6 | 447/9TZ | 25012ET3GKD449TZ | ||
| 6 | 586/7TZ | 25012ET3GKD580Z | ||
| 6 | 586/7T | 25012ET3GKD586/7 | ||
| 8 | 586/7T | 25009ET3GKD586/7 | ||
| 220 | 300 | 4 | 447/9T | 30018ET3GKDN449 |
| 4 | 447/9TZ | 30018ET3GKD449TZ | ||
| 4 | 586/7TZ | 30018ET3GKD580Z | ||
| 4 | 586/7T | 30018ET3GKD586/7 | ||
| 6 | 447/9T | 30012ET3GKD449 | ||
| 6 | 447/9TZ | 30012ET3GKD449TZ | ||
| 6 | 586/7TZ | 30012ET3GKD580Z | ||
| 6 | 586/7T | 30012ET3GKD586/7 | ||
| 8 | 586/7T | 30009ET3GKD586/7 | ||
Especificaciones
| Potencia | ||||
|---|---|---|---|---|
| KW | HP | Polos | Armazón | Model |
| 260 | 350 | 4 | 447/9T | 35018ET3GKD449 |
| 4 | 447/9TZ | 35018ET3GKD449TZ | ||
| 4 | 586/7TZ | 35018ET3GKD580Z | ||
| 4 | 586/7T | 35018ET3GKD586/7 | ||
| 6 | 586/7TZ | 35012ET3GKD580Z | ||
| 6 | 586/7T | 35012ET3GKD586/7 | ||
| 8 | 586/7T | 35009ET3GKD586/7 | ||
| 300 | 400 | 4 | 586/7TZ | 40018ET3GKD580Z |
| 4 | 586/7T | 40018ET3GKD586/7 | ||
| 6 | 586/7TZ | 40012ET3GKD586Z | ||
| 6 | 586/7T | 40012ET3GKD586/7 | ||
| 330 | 450 | 4 | 586/7TZ | 45018ET3GKD580Z |
| 4 | 586/7T | 45018ET3GKD586/7 | ||
| 6 | 586/7TZ | 45012ET3GKD580Z | ||
| 6 | 586/7T | 45012ET3GKD586/7 | ||
| 373 | 500 | 4 | 586/7TZ | 50018ET3GKD586/7 |
| 4 | 586/7TZ | 50018ET3GKD580Z | ||
| 6 | 586/7TZ | 50012ET3GKD580Z | ||
ARMAZÓN 56 DE LÁMINA ROLADA
Características:
- Totalmente cerrados con ventilación exterior (TEFC).
- Montaje horizontal.
- Aislamiento clase F.
- Diseño eléctrico NEMA B.
- Servicio continuo.
- Factor de servicio 1.15.
- Voltaje 208-230 / 460 V @ 60 HZ.
- Protección IP55.
- Eficiencia Premium a partir de 1 HP.
- Aplican certificaciones a partir de 1 HP.
Especificaciones
| Potencia | |||||||
|---|---|---|---|---|---|---|---|
| KW | HP | Polos | Armazón/NEMA | Model | Código SAP | Model | Código SAP |
| 0.19 | 0.25 | 4 | 48 | .2518ES3ERS48T | 12837780 | .2518ES3ERS48TC | 12837781 |
| 6 | 48 | .2512ES3ERS48T | 12837782 | .2512ES3ERS48TC | 13123019 | ||
| 0.37 | 0.5 | 2 | 48 | .5036ES3ERS48T | 12826881 | .5036ES3ERS48TC | 12826880 |
| 4 | 48 | .5018ES3ERS48T | 12826878 | .5018ES3ERS48TC | 12826879 | ||
| 0.56 | 0.75 | 2 | 48 | .7536ES3ERS48T | 12837784 | .7536ES3ERS48TC | 12837785 |
| 0.75 | 1 | 2 | 48 | 00136EP3ERS48T | 16171917 | 00136EP3ERS48TC | 16171979 |
ARMAZÓN DE LÁMINA ROLADA USO GENERAL
Características:
- Uso continuo.
- Arranque con capacitor.
- Rotor tipo jaula de ardilla.
- Abierto sin ventilación (ODP).
- Protección IP21.
- Voltaje 127/ 220V @ 60 HZ.
- Norma NOM-014-ENER-2004
Especificaciones
| HP | Polos | Armazón/NEMA | Model | Código SAP | Model | Código SAP |
|---|---|---|---|---|---|---|
| 0.25 | 2 | W56 | N.2536OS1PA56 | 14318207 | N.2536OS1PA56C | 14823895 |
| 4 | W56 | N.2518OS1PA56 | 14318231 | N.2518OS1PA56C | 14823297 | |
| 0.33 | 4 | W56 | N.3318OS1PA56 | 14336296 | N.3318OS1PA56C | 14823379 |
| 0.5 | 2 | W56 | N.5036OS1PA56 | 14318232 | N.5036OS1PA56C | 14823896 |
| 4 | W56 | N.5018OS1PA56 | 14318233 | N.5018OS1PA56C | 14823381 | |
| 0.75 | 2 | W56 | N.7536OS1PA56 | 14328593 | N.7536OS1PA56C | 14838439 |
| 4 | E56 | N.7518OS1PA56 | 14347784 | N.7518OS1PA56C | 14823382 | |
| 1 | 2 | W56 | N00136OS1PA56 | 14328594 | N00136OS1PA56C | 14823978 |
| 4 | E56 | N00118OS1PA56 | 14347787 | N00118OS1PA56C | 14823383 | |
| 1.5 | 2 | W56 | N00156OS1PA56 | 14328595 | N00156OS1PA56C | 14823979 |
| 4 | E56H | N00158OS1P56 | 14347788 | N00158OS1P56C | 14823386 | |
| 2 | 2 | E56 | N00236OS1PA56 | 14376525 | N00236OS1PA56C | 14826000 |
| 4 | E56H | N00218OS1P56 | 12165929 | N00218OS1P56C | 12166030 | |
| 3 | 2 | E56H | N00336OS1PA56 | 14376442 | N00336OS1PA56C | 14823999 |
ARMAZON DE LÁMINA ROLADA NEMA USO BOMBA
Características:
- Uso continuo.
- Rotor tipo jaula de ardilla
- Abierto sin ventilación (ODP).
- Protección IP21.
- Voltaje 127 V (0.25, 0.5, 0.75 Y 1 HP)
- Voltaje 127 / 220 V (1.5 HP).
- Norma NOM-014-ENER-2004
Especificaciones
| HP | Polos | Armazón/NEMA | Model | Código SAP |
|---|---|---|---|---|
| 0.25 | 2 | W56 | Y.2536OS1XCPW56 | 14924100 |
| 0.5 | 2 | W56 | Y.5036OS1XCPW56 | 14924104 |
| 0.75 | 2 | W56 | Y.7536OS1XCPW56 | 14924254 |
| 1 | 2 | W56 | Y00136OS1XCPW56 | 14924350 |
| 1.5 | 2 | W56 | N00156OE1PA56J | 14438967 |
